compact class 2 biological safety cabinet with integrated Carbon filtration

Class 2 biological safety cabinets are designed to protect both the operator and the product during sensitive procedures, and can be configured as either ducted to a building extract system or as recirculating units. In this case, a customer required all the benefits of a Class 2 cabinet but faced a unique combination of challenges:

  • No access to a building extract system
  • Limited height clearance in the room
  • Restricted floor space due to the size of the room
  • A process involving small quantities of formaldehyde

Our team was tasked with designing a solution that would deliver full protection in a highly constrained space, whilst also considering the safe handling of formaldehyde in the absence of an extract system.

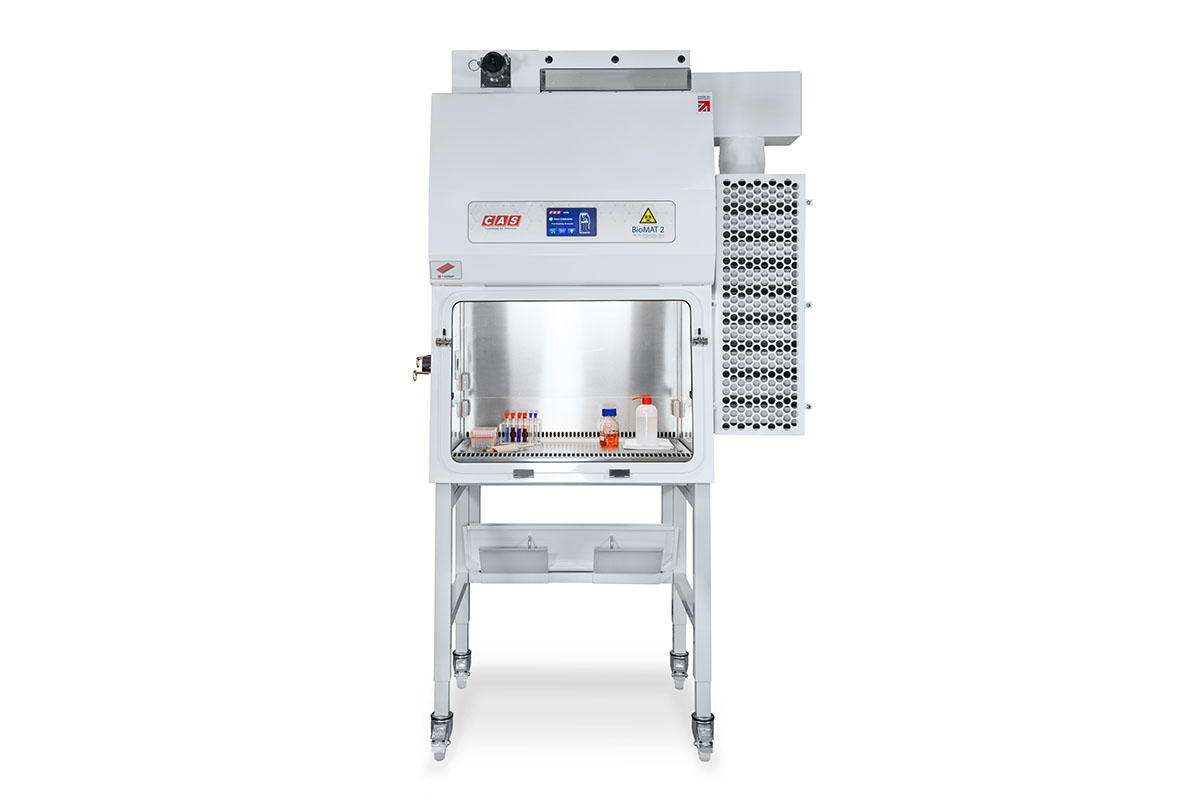

active carbon biological safety cabinet
carbon filtration on biological safety cabinet

project goals

The key objectives of this project were:

  • Operator and Product Protection: To ensure a safe working environment when handling hazardous materials including formaldehyde

  • Compact, Space-Efficient Design: To fit within both narrow and low-clearance areas whilst providing a usable workspace

  • Flexible Installation: To enable the customer to position and move the unit as needed

the result

To meet all requirements, we designed a 900mm-wide Class 2 cabinet featuring:

  • A recirculating airflow design, eliminating the need for connection to an external extract system

  • A molecular active carbon filtration system to filter formaldehyde vapours, mounted to the side of the cabinet to accommodate the room’s height restrictions

  • A compact footprint that maintains ample internal working space despite the narrow width

  • A support stand on wheeled castors to allow easy relocation and flexible positioning

In Summary

This tailored class 2 biological safety cabinet with additional carbon filtration provided the customer with a compact, cost-effective, and highly effective solution, delivering full protection without the need to modify their existing process or infrastructure.

See more about our Class 2 Cabinets here.

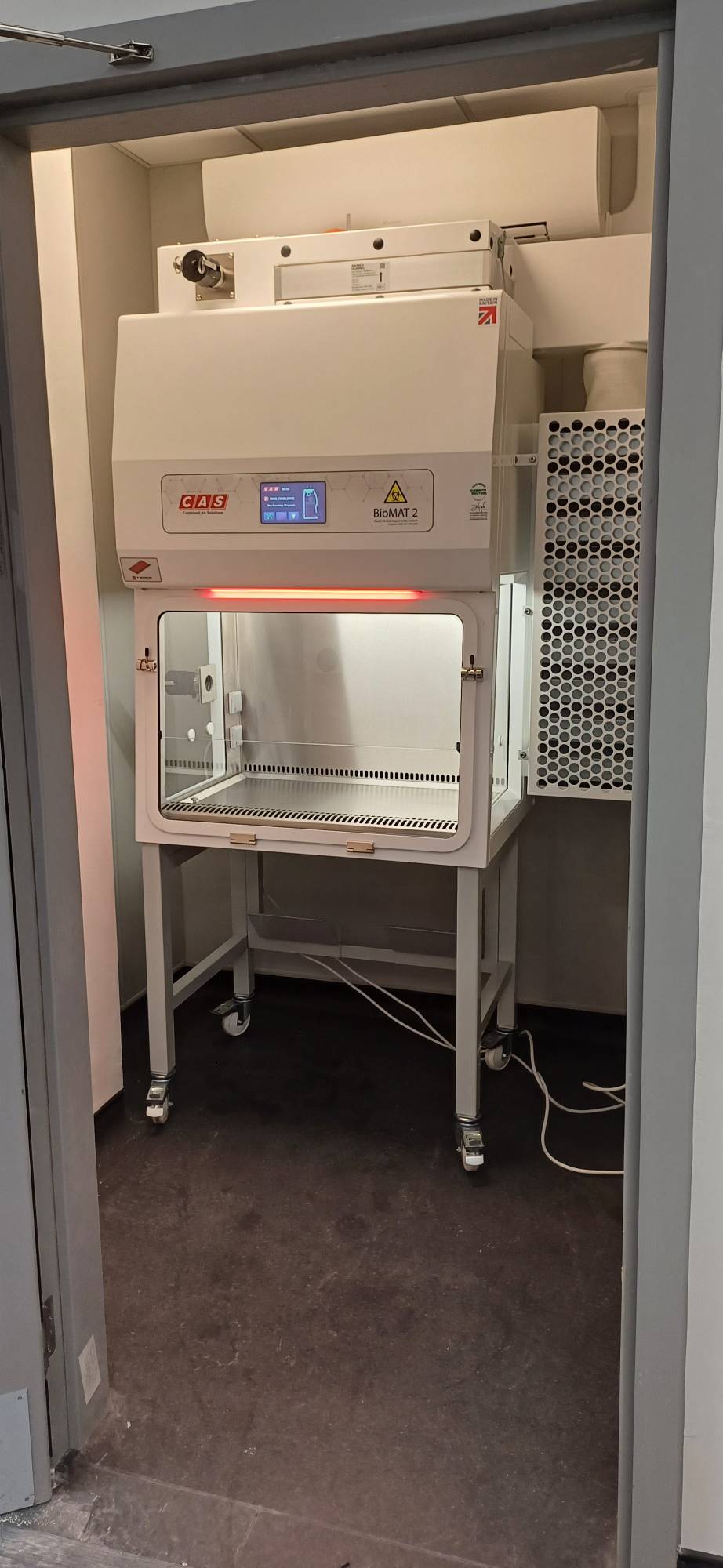

custom class 2 biological safety cabinet carbon filtration
