Horizontal Laminar Flow Cabinets

Bespoke manufacture and design to suit your exact requirements

Horizontal Laminar Flow Cabinets

Horizontal laminar flow cabinets from CAS are designed to provide Grade A GMP air quality.

Product details

We offer a range of horizontal laminar flow products that are custom designed and manufactured to suit your exact requirements. Horizontal laminar flow products provide ultraclean working conditions for medical, general laboratory and the manufacture of sensitive electronic devices.

Products include:

  • Horizontal laminar flow units
  • Vertical laminar flow units
  • Laminar flow benches and hoods
  • Laminar flow cabinets and booths

All horizontal laminar flow products are designed to provide product protection by creating a particle-free working environment in accordance with EU GMP Grade A. This is achieved by passing air through an HEPA filter, which then provides an aseptic laminar air flow across the main working area.


The horizontal range of laminar flow cabinets utilise air taken from the laboratory, which is drawn inwards through a high efficiency pre-filter, trapping larger particles before the air is then passed through a HEPA filter. The air is discharged over the work area in a horizontal unidirectional stream providing a sterile working environment.

Applications:


  • General and routine hospital pharmacy operations including preparation of IV and TPN bags
  • Laboratory tissue culture work where sterility of the work is essential
  • Pharmaceutical handling of liquids or powders where sterility is essential, but the operation presents no hazard to the operator
  • Manufacture and assembly of micro-electronic components in a sterile environment

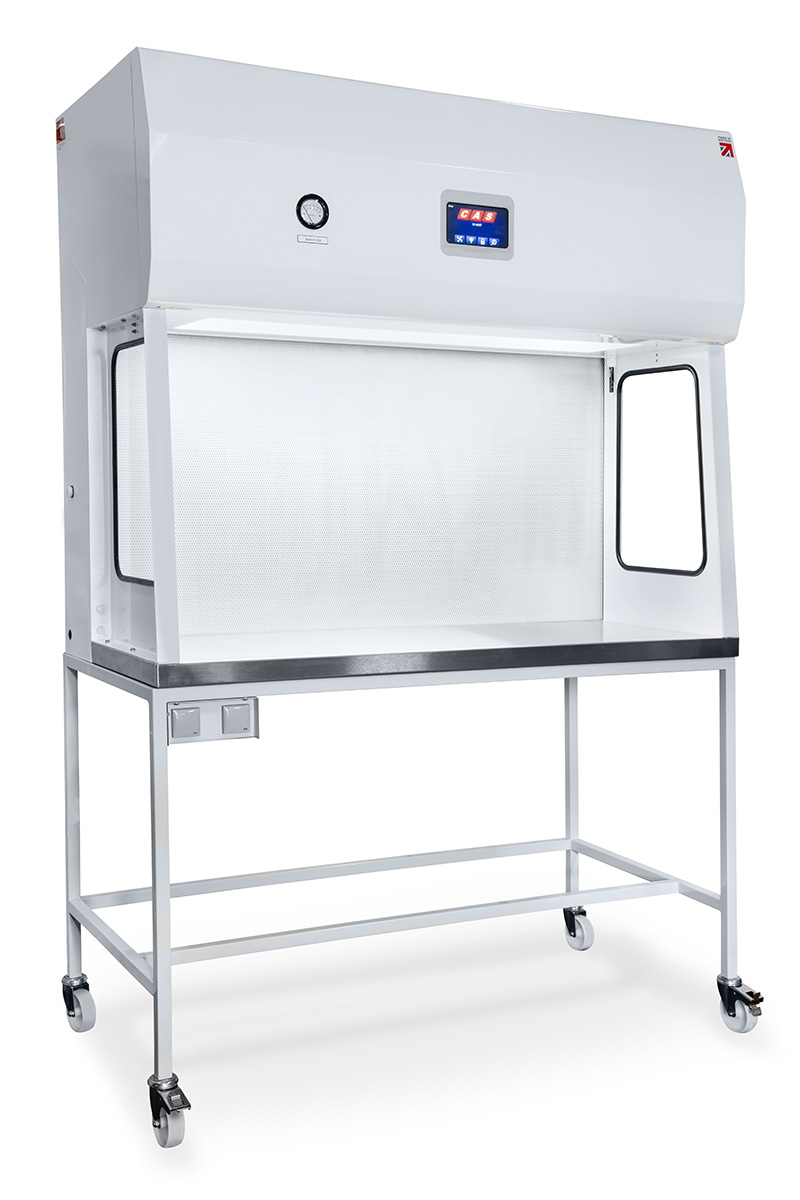

Contained-air-solutions-Horizontal-Laminar-Flow-Cabinet

Airflow

Diagram

Contained-air-solutions-meet-the-team

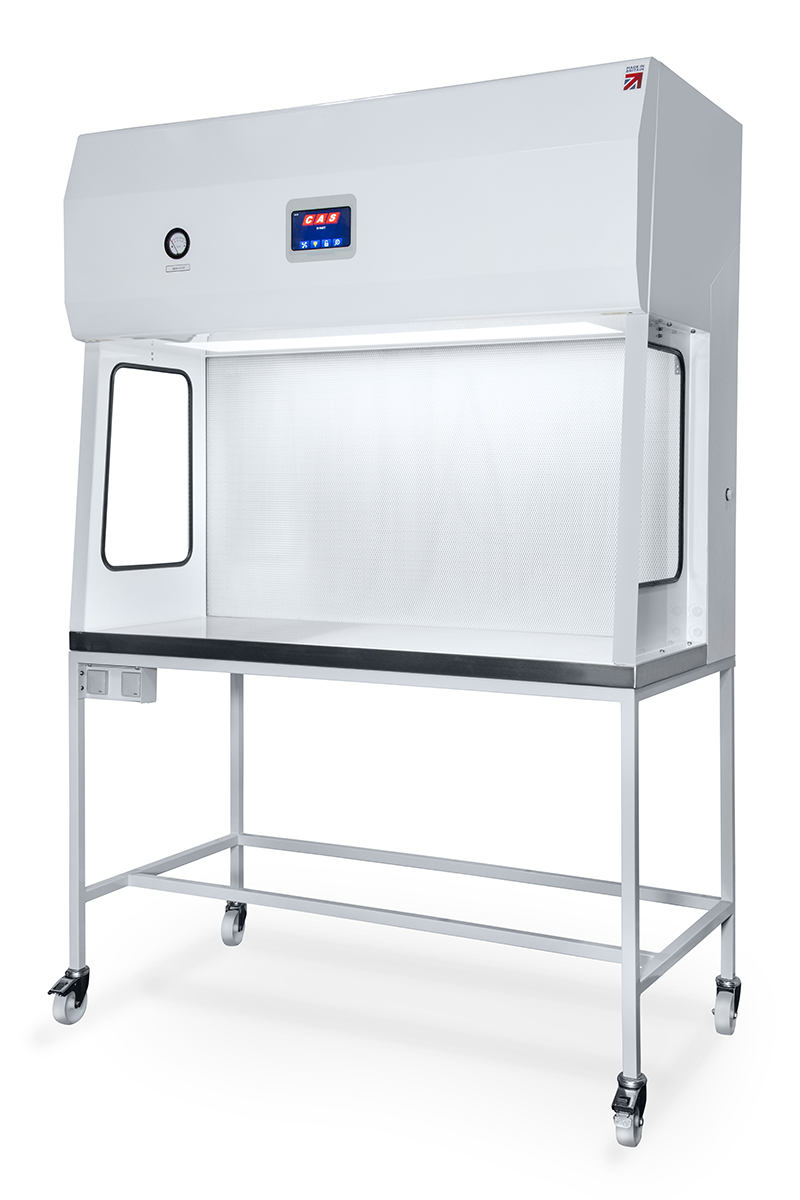

Horizontal-flow-cabinets

Features:

  • Designed to produce better than Class 5 cleanliness conditions to BS EN ISO 14644:1999
  • HEPA filtration to H-14, 99.995% MPPS efficiency equal to 99.999% DOP efficiency (EN 1822-1)
  • Latest EC energy efficient fans providing maximum performance with minimal energy use
  • Ultra-low energy LED lighting housed behind an opal diffuser providing lighting levels >750 Lux
  • Body manufactured using premium quality mild steel with fully welded or sealed jointsAll internal and external surfaces white powder coated finish RAL 9016
  • Worksurface manufactured in grade 316 stainless steel, welded with a minimum 240S polished finish
  • Noise levels <60 dBA
  • Clear toughened glass side screens for maximum working visibility
  • Pre-filter panel located in top panel and accessed from frontUnidirectional airflow providing sterile working conditions almost immediately on start up
  • Natural gas solenoid (optional feature)
  • Main controls are mounted behind the membrane on the rear of the front hinged panel incorporating main PCB control panel including accurate airflow sensors
  • Blue backlit LCD screen provides at-a-glance cabinet status including HEPA filter pressure, positioned directly above the main working area for easy access
  • DOP test ports are provided for smoke injection during routine testing
  • Variable speed fans to maximise filter lifetime
  • Wide range of available sizes
  • Larger models available for specialised applications
  • Integrated easy touch tactile control membrane, easy wipe clean with the following control buttons: Fan on/off switch, Lights on/off switch, Alarm Mute, Programmable UV Lighting
  • Standard compliance to BS EN 14644 Class 3, 4 or 5 EC GMP Grade A Class F to BS 5295 Class 100 (Federal Standard 209E)
