Class 2 Biological Safety Cabinets

ROBOTIC BIOLOGICAL SAFETY CABINETS

biological safety cabinets to house robotic equipment with features tailored to suit every instrument, space and workflow.

BioMAT Robotic

  • Designed To Standards
  • High Efficiency Filtration
  • Tailored To Application

  • ISO Class 5 Clean Environment

Download Our Full Product Brochure
Request a Quotation

AVAILABLE IN

CLASS 1 OR 2 CONFIGURATIONS

Robotic Biological Safety Cabinets are available in Class 1 (operator and environment protection) or Class 2 (operator, product, and environment protection) configurations.

Engineered to EN 12469 and NSF49 safety standards, these advanced solutions are expertly designed to accommodate robotic instruments and automated processes, ensuring a safe, secure, and controlled environment.

With features tailored to suit every instrument, space, and workflow, you can trust Contained Air Solutions to deliver advanced, precision-engineered solutions that protect your processes, personnel, and products.

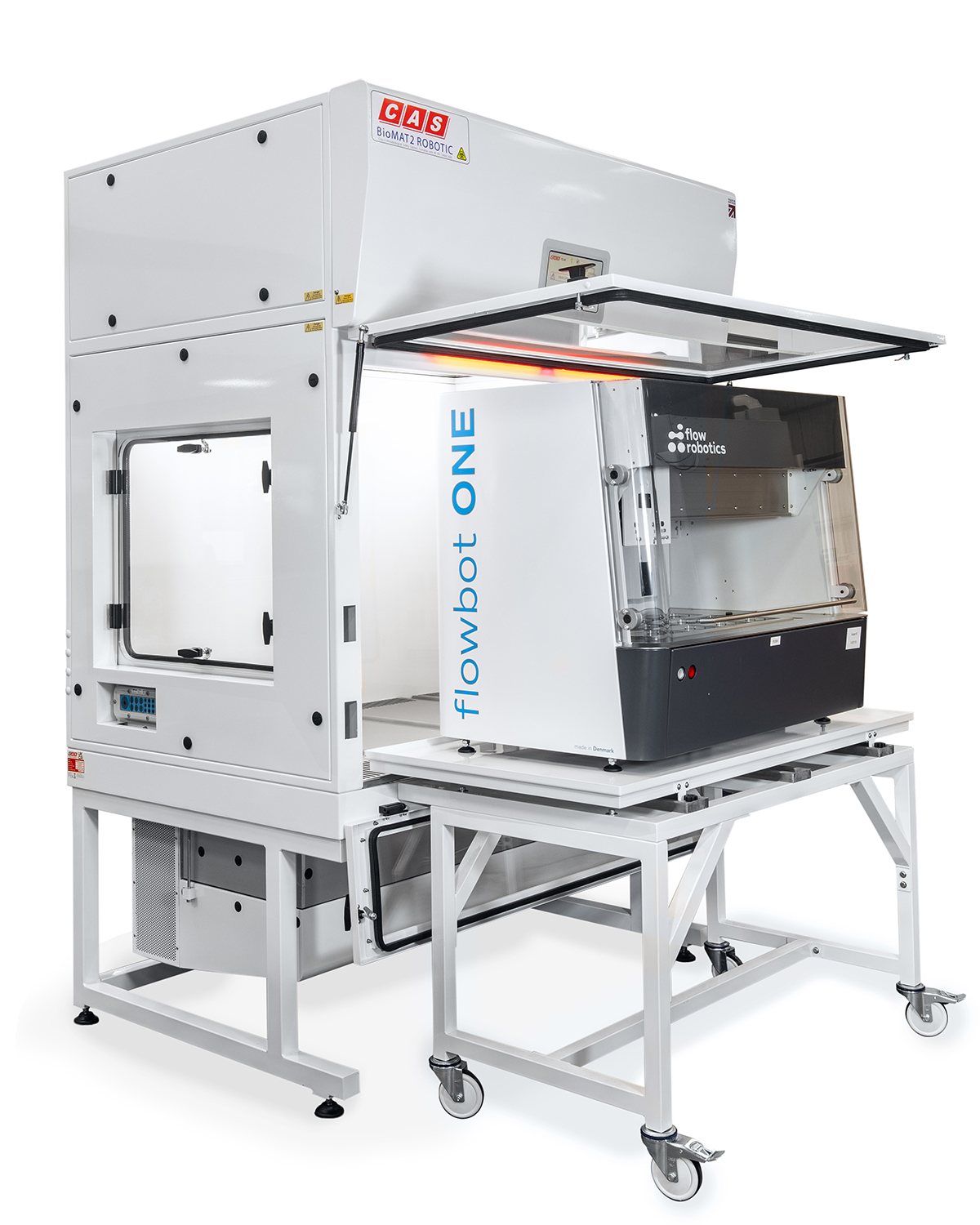

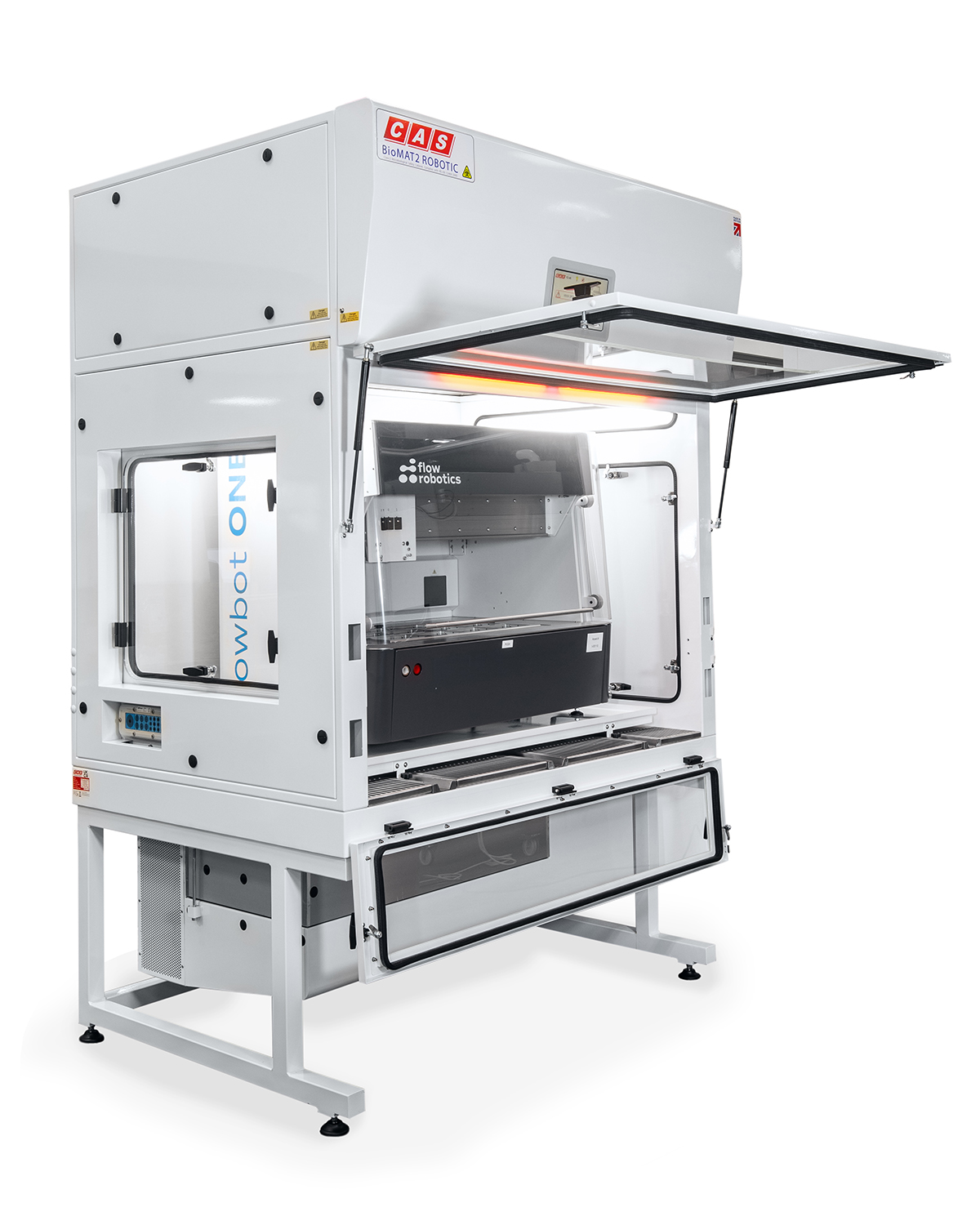

SEAMLESSLY INTEGRATE WITH ANY ROBOTIC EQUIPMENT

WHY CHOOSE CAS?

Receive the solution you need to succeed with our free design service, product training, comprehensive warranty, and lifetime support.

Whether it’s a standard in-stock model or a fully custom solution, our expert team is with you every step of the way.

FREE Consultation

On-site survey and a no-obligation quote tailored to your needs.

FREE Design Service

Our expert design technicians create a solution for your needs.

FREE Product Training

Dedicated support to master your new equipment.

Inclusive Warranty

3-year parts and labour (UK) 1-year parts (Global), with option to extend.

Lifetime Support

Accessible technical advice, service packages, and in-stock spare parts.

Full Project Support

In-house solution delivered by us at every stage (no third parties).

FEATURES INCLUDE:

robotic biological safety cabinet

  • Pre filters to extend filter life

  • High-efficiency HEPA filtration
  • Energy-efficient LED lighting
  • Energy-saving EC fans
  • Real-time cabinet status monitoring
  • Touchscreen display
  • High grade 316 stainless steel internal
  • Integrated service connections
  • Fumigation mode and connections
  • Integral formalin vaporizer

  • UV disinfection with auto mode

  • Additional carbon filtration

  • Additional fumigation door

  • Uninterrupted power supply

  • Equipment Loading Platform

  • Support stand

  • Machine Guard
  • Waste Chute
  • Cooling Systems
  • Docking Station

Have a feature in mind that’s not shown here?

We specialise in tailoring solutions to meet your exact requirements.

Or

AIRFLOW OPTIONS

  • Class 1 configuration

  • Class 2 configuration

  • Ducted exhaust module incorporating single HEPA filter and integral anti blowback damper.

  • Thimble exhaust module incorporating double HEPA filters and integral anti blowback damper.

  • Recirculating exhaust module incorporating double HEPA filters and vertical or horizontal discharge grille for return air back into the laboratory.

  • TriMAT constant exhaust bypass module to simplify the extraction of air from laboratories, exclusive to CAS.

  • Exhaust module can be configured in multiple positions to accommodate your laboratory layout or ducting requirements.

PRODUCT SPECIFICATION

*Typical standard specification based on standard class 2 model* Product-specific technical data to be advised during the consultation/design stage

Cabinet Size 1200mm 2000mm 2500mm 3000mm
External w/d/h (mm)  1200 / 1050 / 2670  2000 / 1500 / 2670  2500 / 1500 / 2670 3000 / 1500 / 2650
Internal w/d/h (mm)  1030 / 900 / 950  1830 / 1100 / 950 2350 / 1100 / 950  2850 / 1100 / 950
Exhaust air volume m3/s  0.15m3/s  0.27 m3/s  0.34 m3/s  0.42m3/s
Noise level Dba @ 1m  <65 dB  <65 dB  <65 dB  <65 dB
Light Level 750 Lux  750 Lux  750 Lux  750 Lux
Duct Connection 200mm  200mm  250mm 250mm



Standard   Meets BS EN 12469:2000 and NSF49 standards
Filtration  H-14 HEPA (standard) @ 0.3µ 99.995% efficiency (ULPA and carbon available)
Construction  2mm mild steel
Finish  White RAL 9016
Work surface  Grade 316s Stainless Steel powder coated White RAL9016
Side windows  12mm UV resistant cast acrylic
Front visor hinged  Mild Steel powder coated white RAL9016 C/W 8mm Acrylic vision panel
Voltage AC 110 – 230V
