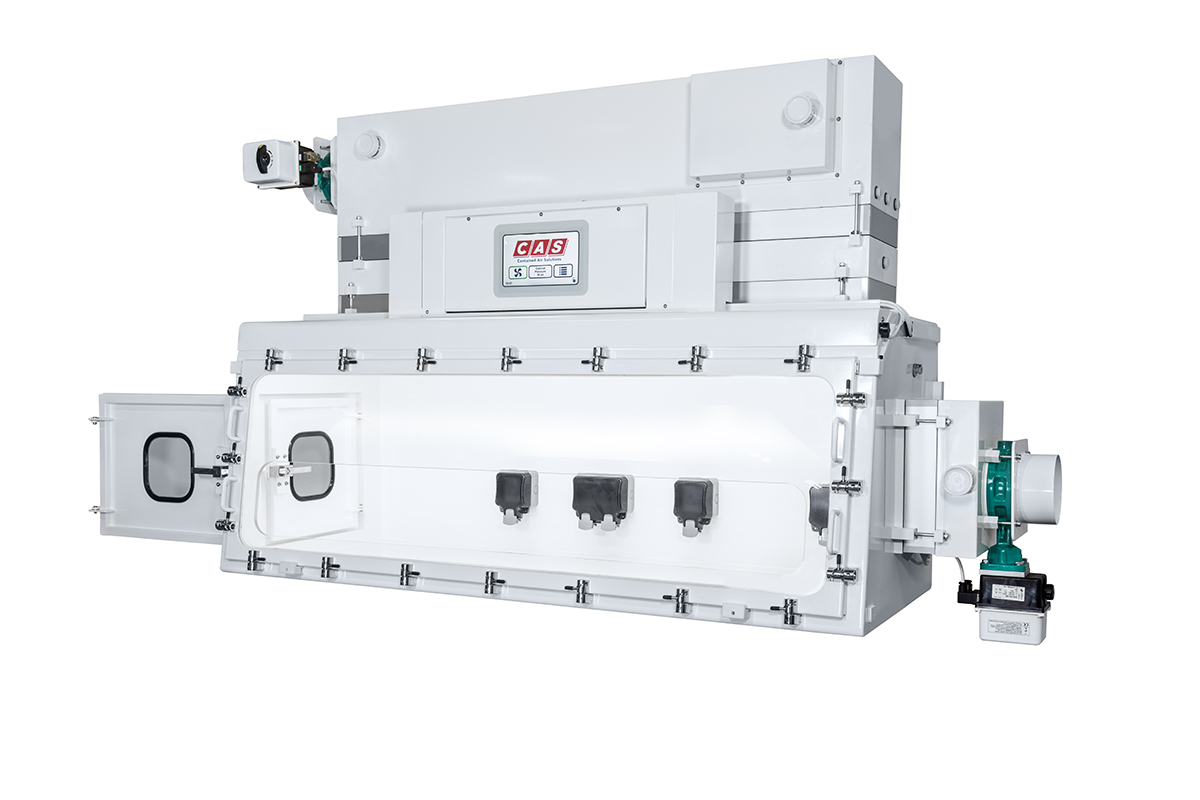

CLASS 3/1
BIOLOGICAL SAFETY CABINETS
Class 3/1 Hybrid Biological Safety Cabinets offer the flexibility to operate in either Class 1 or Class 3 configurations. The supplied interchangeable screen allows for seamless switching, providing versatility to adapt to a wide range of applications.

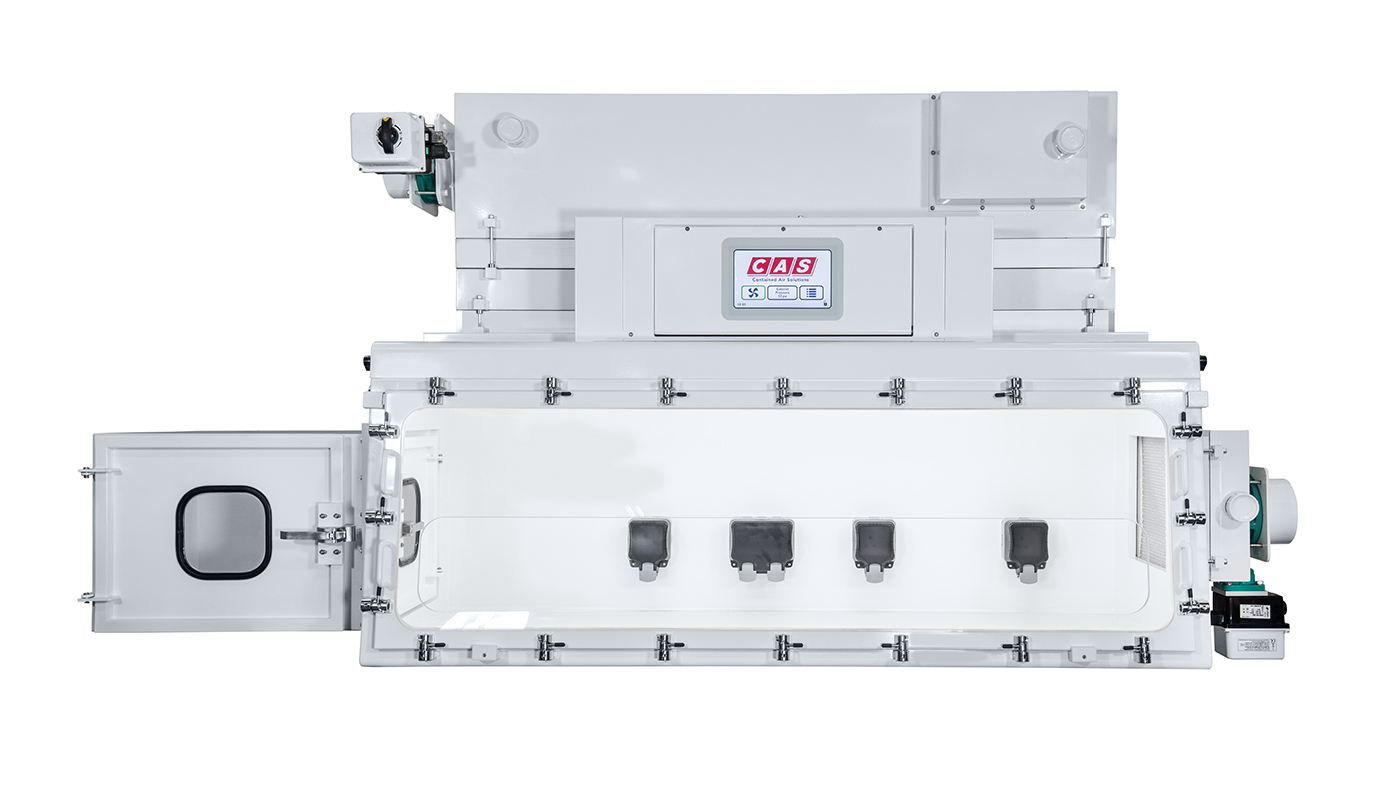

In the Class 1 configuration, a controlled airflow system draws air through the open front, across the work surface, and HEPA-filters the exhaust air, providing protection for the operator and the environment.

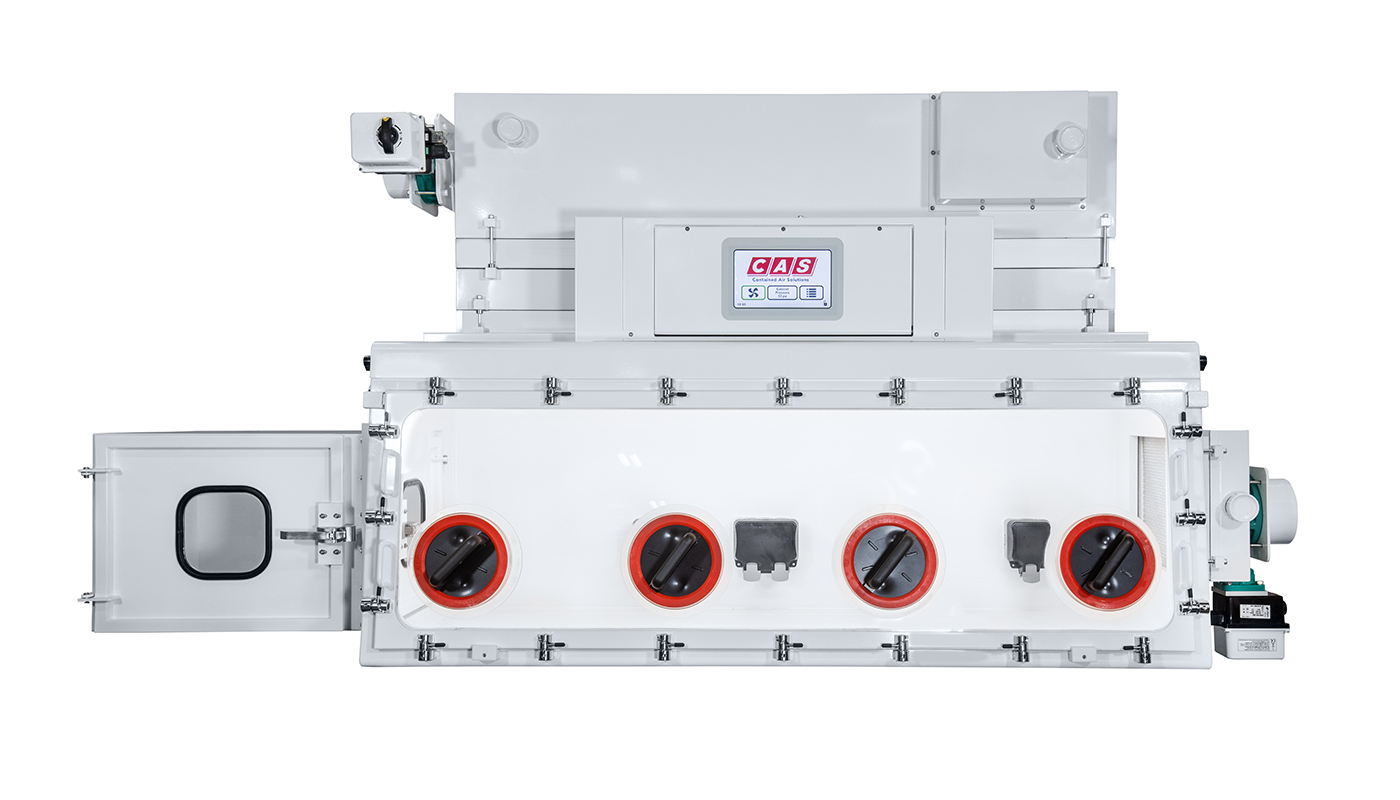

The Class 3 configuration, operators work through gloves attached to glove ports, ensuring complete physical barrier protection. This design provides the highest level of protection for operators, products, and the environment.
Both configurations effectively prevent the release of airborne particulate contaminants when handling potentially hazardous materials, ensuring a safe and controlled workspace that adapts to your operational needs.
Class 3/1 Hybrid Biological Safety Cabinets from Contained Air Solutions meet BS EN 12469:2000 standards and can be tailored to your specific requirements.
CLASS 3 AIRFLOW
Inward air passes through a HEPA filter before entering the work area, where it circulates clean air and is HEPA-filtered again before discharge. The discharged air can either be released back into the room (recirculating) or through a building extract system.
CLASS 1 AIRFLOW
Inward air travels through the open front, over the worksurface, and is HEPA-filtered before being discharged either by releasing it back into the room (recirculating) or through a building extract system. (recirculating) or through a building extract system.
Blue: Inward environment air / Green: Filtered clean air
WHY CHOOSE CAS?
Receive the solution you need to succeed with our free design service, product training, comprehensive warranty, and lifetime support.
Whether it’s a standard in-stock model or a fully custom solution, our expert team is with you every step of the way.
FEATURES INCLUDE:
DESIGNED FOR YOUR PROCESS | BUILT FOR YOUR SUCCESS
EXHAUST AIRFLOW OPTIONS
PRODUCT SPECIFICATION
*Typical specification based on standard class 3 model* Materials and configurations are fully customisable
| Cabinet size | 1200mm | 1500mm | 1800mm |
|---|---|---|---|
| External w/d/h (mm) | 1200/640/1370 | 1500/640/1370 | 1800/630/1370 |
| Internal w/d/h (mm) | 1194/634/694 | 1494/634/694 | 1794/634/694 |
| Weight | 300kg | 320kg | 340kg |
| Exhaust air volume | 0.08 m3/s | 0.08 m3/s | 0.08 m3/s |
| Hatch air volume | 0.08 m3/s | 0.08 m3/s | 0.08 m3/s |
| Noise level | <65dBA | <65dBA | <65dBA |
| Light level | >750 lux | >750 lux | >750 lux |
| Duct connection | 160mm | 160mm | 160mm |
| Power consumption | 0.19kw | 0.27kw | 0.35kw |
| Standard | Compliant with EN 12469:2000 and sited to BS 5726:2005 |
|---|---|
| Voltage AC | 230V |
| Filtration | H-14 HEPA (standard) @ 0.3µ 99.995% efficiency (ULPA available) |
| Construction | Fully welded 2.5mm 316L stainless steel |
| Finish | Traffic white RAL 9016 |
| Side windows | 5mm UV resistant toughened glass |
| Fumigation | Formaldehyde, Vaporised Hydrogen Peroxide, or Formalin |
| Front visor | 5mm UV resistant toughened glass |
