BIOMAT3

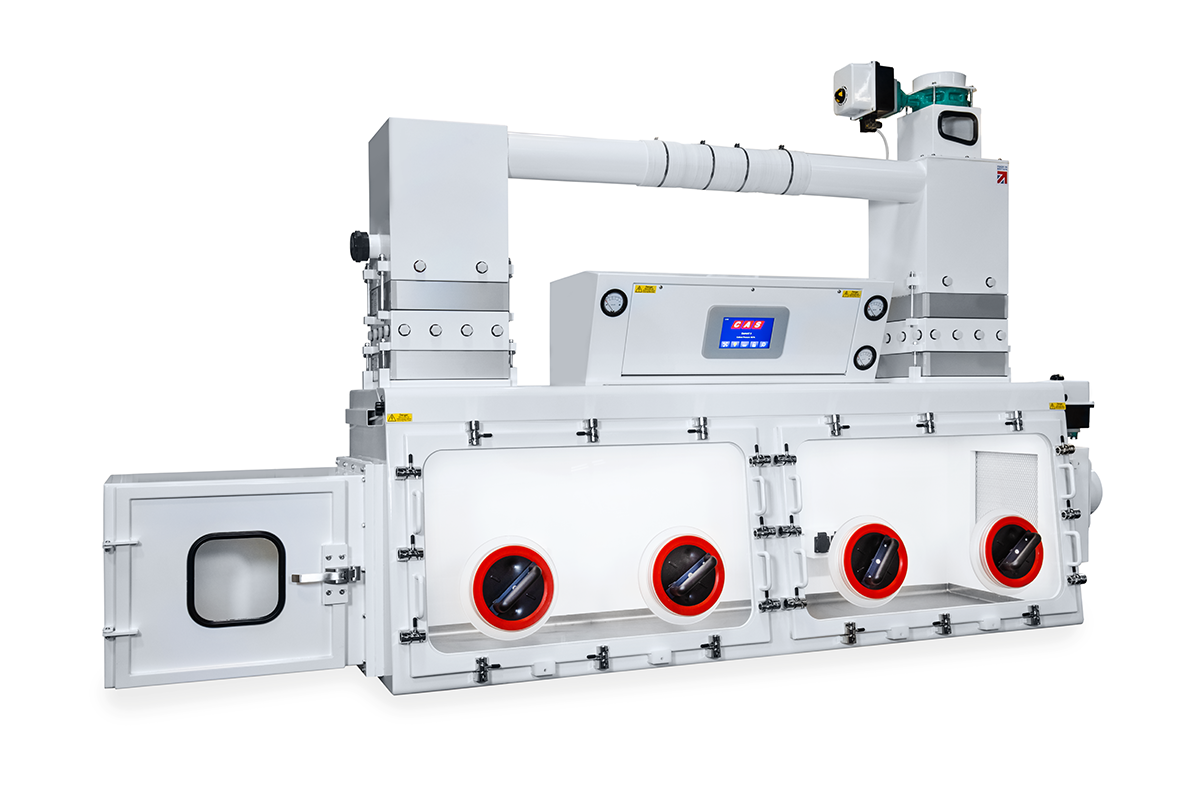

CLASS 3 BIOLOGICAL SAFETY CABINETS
Class 3 Biological Safety Cabinets provide the highest level of protection for operators, products, and the environment when handling the most hazardous materials (up to Hazard Group 4). Inflow air is HEPA-filtered before entering the fully enclosed work area to deliver a clean, particle-free workspace, and exhaust air passes through double HEPA filters to prevent the release of contaminants.
Operators work through gloves attached to glove ports, ensuring complete physical barrier protection. This design offers the ultimate safeguard for your processes, personnel, and products.
Class 3 Biological Safety Cabinets from Contained Air Solutions meet BS EN 12469:2000 standards, are independently type-tested by the UKHSA, and can be tailored to your specific requirements.
CLASS 3 AIRFLOW
Inward airflow passes through a HEPA filter before entering the work area, where it circulates clean air and is then HEPA-filtered again before discharge. The discharged air can either be released back into the room (recirculating) or through a building extract system.
Class 3 cabinets are designed for work with all biological agents up to ACDP Hazard Group 4 (HG4) and Biosafety Level 4 (BSL-4). For levels 1-3, or where full barrier containment is not required, explore our other Biological Safety Cabinets.
- Blue: Inward environment air
- Green: Filtered clean air
WHY CHOOSE CAS?
Receive the solution you need to succeed with our free design service, product training, comprehensive warranty, and lifetime support.
Whether it’s a standard in-stock model or a fully custom solution, our expert team is with you every step of the way.
FEATURES INCLUDE:
DESIGNED FOR YOUR PROCESS | BUILT FOR YOUR SUCCESS
EXHAUST AIRFLOW OPTIONS
PRODUCT SPECIFICATION
*Typical specification based on standard models* Materials and configurations are fully customisable
| Cabinet size | 1200mm | 1500mm | 1800mm |
|---|---|---|---|
| External w/d/h (mm) | 1200/640/1370 | 1500/640/1370 | 1800/630/1370 |
| Internal w/d/h (mm) | 1194/634/694 | 1494/634/694 | 1794/634/694 |
| Weight | 300kg | 320kg | 340kg |
| Exhaust air volume | 0.08 m3/s | 0.08 m3/s | 0.08 m3/s |
| Hatch air volume | 0.08 m3/s | 0.08 m3/s | 0.08 m3/s |
| Noise level | <65dBA | <65dBA | <65dBA |
| Light level | >750 lux | >750 lux | >750 lux |
| Duct connection | 160mm | 160mm | 160mm |
| Power consumption | 0.19w | 0.27w | 0.35w |
| Standard | Type tested and approved to EN 12469:2000 and sited to BS 5726:2005 |
|---|---|
| Voltage AC | 230V |
| Filtration | H-14 HEPA (standard) @ 0.3µ 99.995% efficiency (ULPA available) |
| Construction | Fully welded 2.5mm 316L stainless steel |
| Finish | Traffic white RAL 9016 |
| Side windows | 5mm UV resistant toughened glass |
| Fumigation | Formaldehyde, Vaporised Hydrogen Peroxide, or Formalin |
| Front visor | 5mm UV resistant toughened glass |
