CLASS 1 AIRFLOW
Inward airflow travels through the open front, over the worksurface and is HEPA-filtered before being discharged either by releasing back into the room (recirculating) or through a building extract system.
Class 1 cabinets are suitable for work with all biological agents up to ACDP Hazard Group HG3 and Biosafety Level BSL-3. For level 4 (HG4/BSL-4) or applications requiring fully sealed containment, explore our Isolators or Class 3 Biological Safety Cabinets.
This type of cabinet is not designed to offer protection to material being handled. For product protection, explore our Class 2 Biological Safety Cabinets.
- Blue: Inward environment air
- Green: Filtered clean air
FEATURES INCLUDE:
EXHAUST AIRFLOW OPTIONS
PRODUCT SPECIFICATION
*Typical specification based on standard models.* Product-specific technical data to be advised during the consultation/design stage
| Cabinet size | 1200mm | 1500mm | 1800mm |
|---|---|---|---|
| External w/d/h (mm) | 1200/630/1250 | 1500/630/1350 | 1800/630/1350 |
| Internal w/d/h (mm) | 1195/625/700 | 1495/625/700 | 1795/625/700 |
| Weight | 200kg | 250kg | 300kg |
| Exhaust air volume (m3/s) | 0.140 | 0.180 | 0.210 |
| Re-circ air volume (m3/s) | 0.140 | 0.180 | 0.210 |
| Noise level | <60dBA | <62dBA | <65dBA |
| Light level | 900 lux | 900 lux | 900 lux |
| Duct connection | 160mm | 200mm | 200mm |
| Power consumption | 0.4kw | 0.5kw | 0.6kw |
| Standard | Type tested and approved to EN 12469:2000. Sited to BS 5726:2005. |
|---|---|
| Voltage AC | 230V |
| Filtration | H-14 HEPA (standard) @ 0.3µ 99.995% efficiency (ULPA available) |
| Construction | 2mm mild steel |
| Finish | Traffic white RAL 9016 |

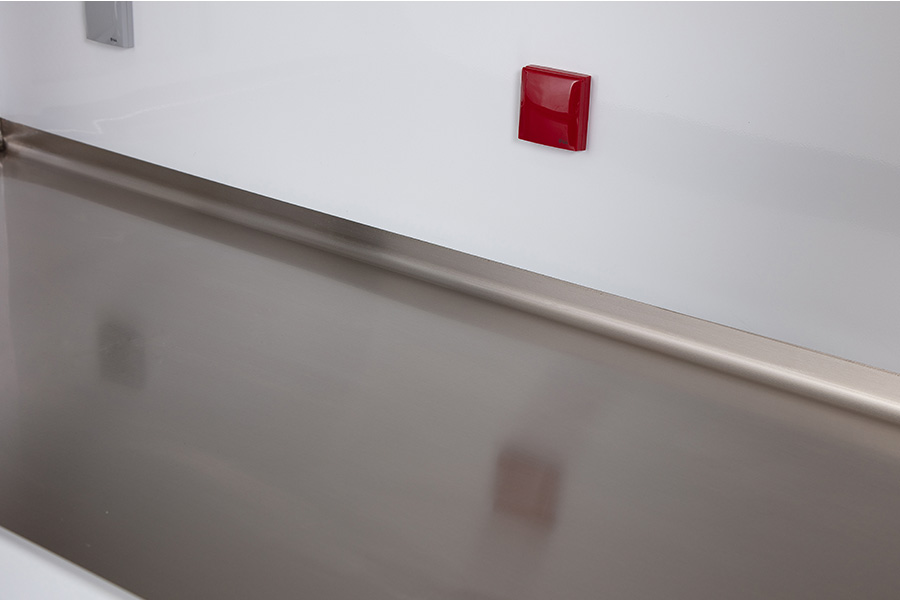

| Inner Worksurface | Grade 304 stainless steel |
| Side Windows | 5mm UV resistant toughened glass |

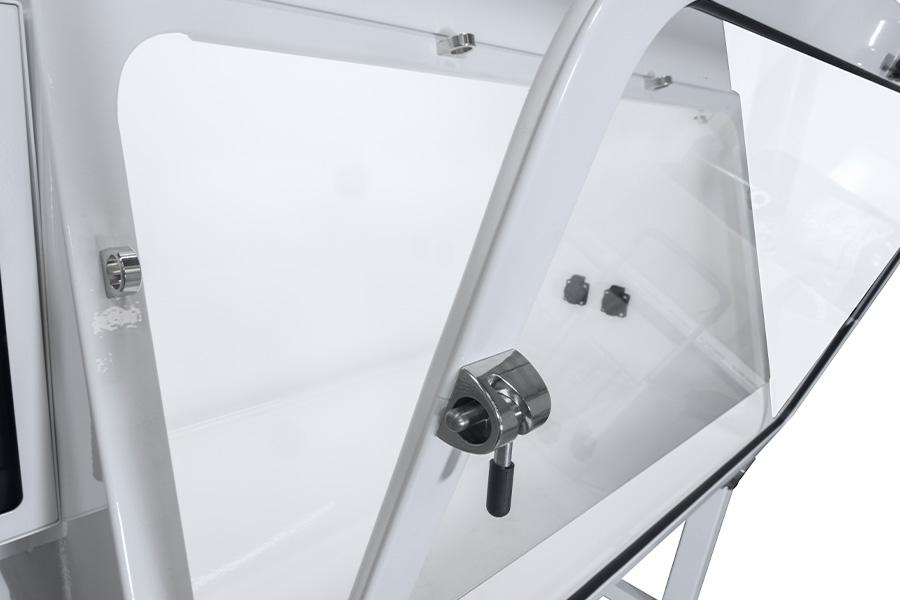

| Front visor | 5mm toughened glass with 200mm open aperture – closed for fumigation using a closure panel (supplied as standard) or fumigation panel (optional extra) |
